Pile Testing

CMS can provide dynamic and full scale static load testing for all kinds of piling according to ASTM D4945, D1143, D3689, D3966 or equivalents.

Pile testing gives piece of mind to engineer and developer allowing designs to be physically verified and if necessary adapted according to the site conditions.

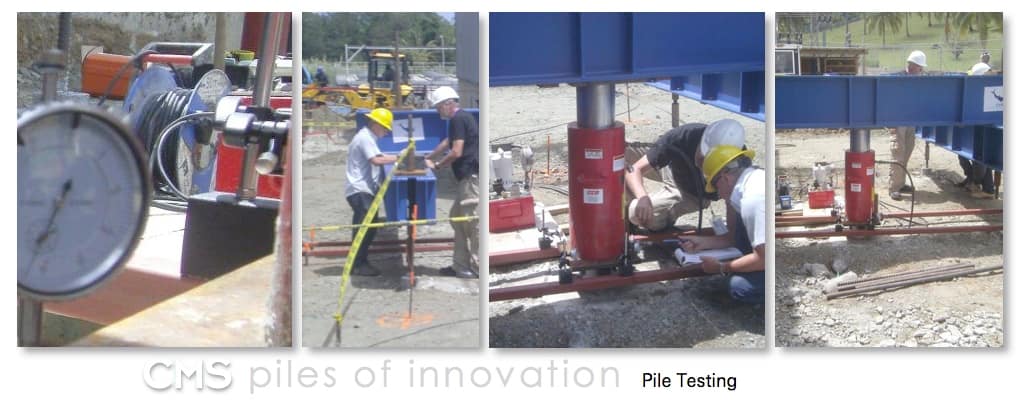

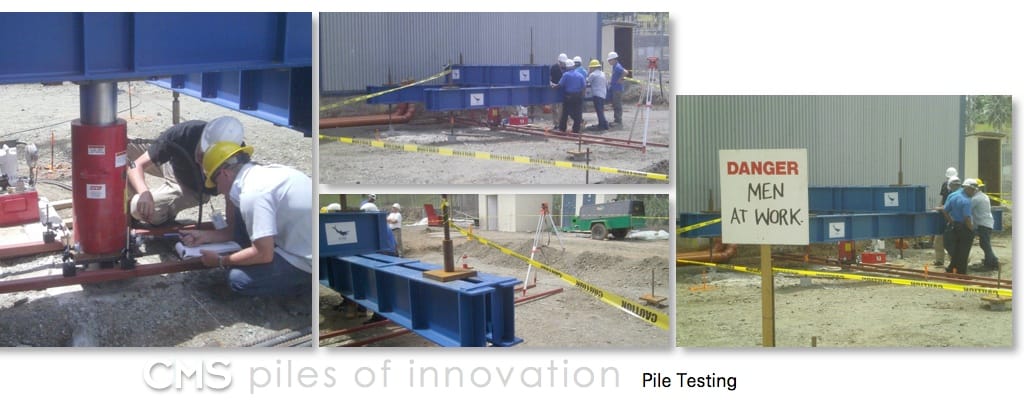

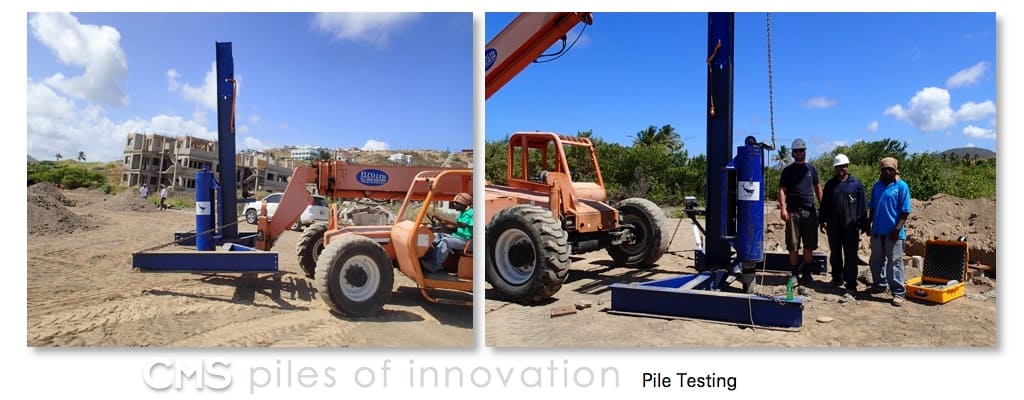

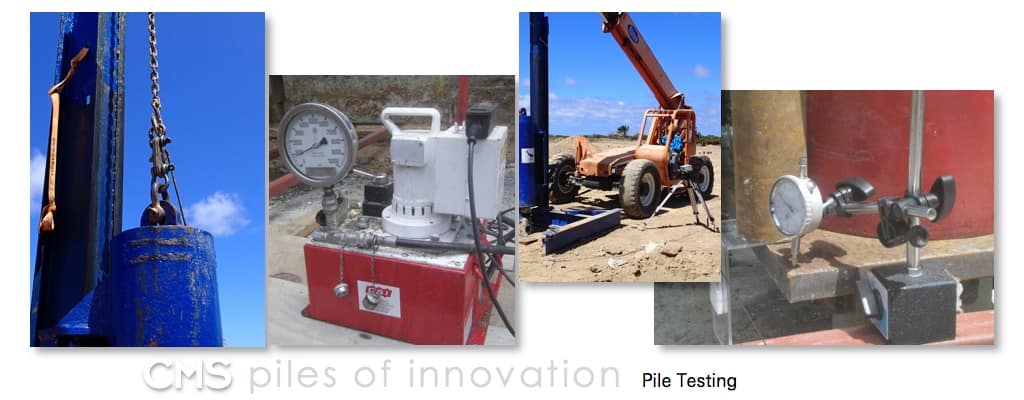

We have developed portable testing drop hammers up to 2 tons and we have calibrated hydraulic rams and guages for static load testing up to 150 tons, that we use to apply load through a modular reaction beam system that can either be independently piled or can use production piles to provide the reaction load required – a far cheaper and quicker alternative to traditional methods such as the Kentledge load test.
